Product details

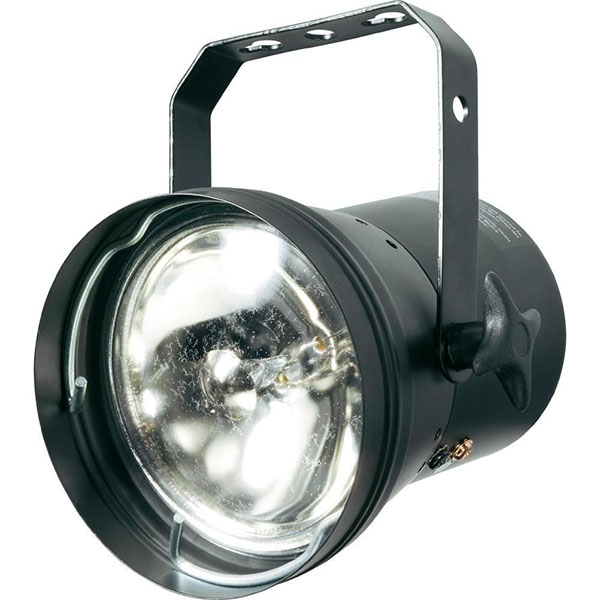

Pinspot with PAR-36 6V/30W lamp
Suitable Pinspot for PAR-36 6V/30 W lamp
The Pinspot T-36 is very well suited for illuminating mirror balls, for entrance or counter areas or simply as basic lighting.
Its narrow beam angle makes the projection show a 30-centimetre light circle from a distance of four metres. The use of alternative light sources makes several beam angles possible.
Color caps or color foils can easily be placed in front of the T-36.

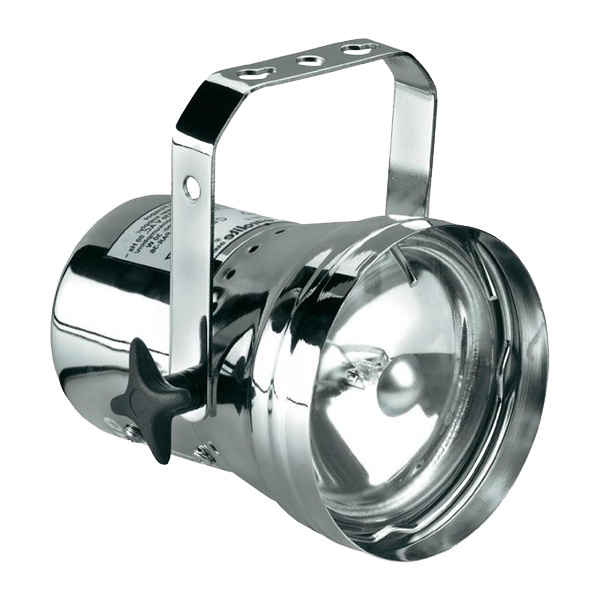

The body of the pinspot is available in black and optionally in silver and can be easily locked in place using the retaining clip.
Pinspot with PAR-36 6V/30W lamp
· Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
· Color caps or color foils can be attached in front of the lens
· For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
· Low power consumption
· Diverse beam angles are possible when using alternative illuminants
· Controlling by plug and play
· Very high color rendering index (CRI)
· With Mounting bracket
· Available in various colors
Power supply: | 230 V AC, 50 Hz | |||
Power consumption: | Max. 30 W | |||
IP classification: | IP20 | |||
Protection class: | Class I | |||
Suitable lamp: | PAR-36 G53STC | |||
Power connection: | Fixed power supply cord with safety plug | |||
Cable construction: | 3 x 0,75 mm² H05VV-F | |||
Cable length: | Approx. 0,9 m | |||
Base: | Wires | |||
Control: | Plug and play | |||
Color rendering index (CRI): | 99 Ra | |||
Housing color: | Black | |||
Attachment system: | Mounting bracket | |||
Material: | Metal | |||
Dimensions: | Length: 16 cm | |||
Weight: | 1,23 kg | |||
Lamp | ||||
Voltage (lamps): | 6,4 V | |||
Nominal wattage: | 30 W | |||
Base: | G53STC | |||
Lamp type: | Halogen lamp; clear lamp | |||
Lamp specification: | Dimmable | |||
Beam angle: | 6° | |||
Color temperature: | 3000K | |||
Shape: | PAR-36 | |||
Mounting bracket | ||||
Diameter mounting holes: | 3 x 10 mm; 1 x 8 mm | |||
Material: | Metal, 2 mm | |||
Lamp clamping ring | ||||
Material: | Metal | |||
Color: | Silver | |||
Legal specifications | ||||
Special product: | Not designed for household room illumination | |||
Intended use: | Show effect lighting | |||
1 | 4026397380804 | 1,30 kg | 13cm x 13cm x 19cm | |
12 | 4026397463040 | 16,20 kg | 52,5cm x 40,5cm x 22cm | |
